18000 fibre, acid leached imaging bundle delivers bright images

Estimated reading time 1 minute

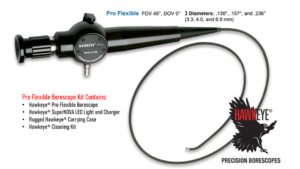

High-quality articulating Borescope with 45° field of view

The Hawkeye® Pro Flexible Borescopes deliver an excellent image with high resolution, sharpness, detail, and contrast through the 18,000 fibre, acid-leached imaging bundle.

It is the density of imaging fibre that provides the high quality, which is not available on lower cost alternatives which simply cannot deliver image quality this high.

Pro Flexible Fiberscopes offer 2-or 4-way articulation allowing you to control the tip’s direction-of-view over a 240° range (±120°), using a thumb-lever on the aluminium borescope body. The lever can also be locked to hold a particular view.

These fibreoptic Borescopes are available in diameters of 3.3, 4.0, 5.0 and 6.0 mm and can be used to inspect everything from small holes to large cylinders. As such, this inspection scope is ideally suited for the non-destructive testing for back wall impingement and many other quality control applications.

The Hawkeye Pro Flexible is available as part of a kit.



Full details at https://bit.ly/44w4rbu
