Laser scanning transforms inspection of roofing products

Few people outside the tile-making and building industry know that a good quality roof tile has to be manufactured to a tolerance as tight as plus or minus half a millimetre. It places a requirement on the research and development and quality control (QC) functions in that sector to measure prototype tiles and mass produced tile samples to ensure they are accurate. Metrology staff also need to check the wear on moulds used to make the product, as well as the condition of tungsten carbide wear parts and steel tooling in the production machinery. Sometimes it is necessary to reverse-engineer replacement components for older machines to avoid delays in production, or produce a CAD model to update a legacy tile, or inspect a 3D-printed item to assist a design process.

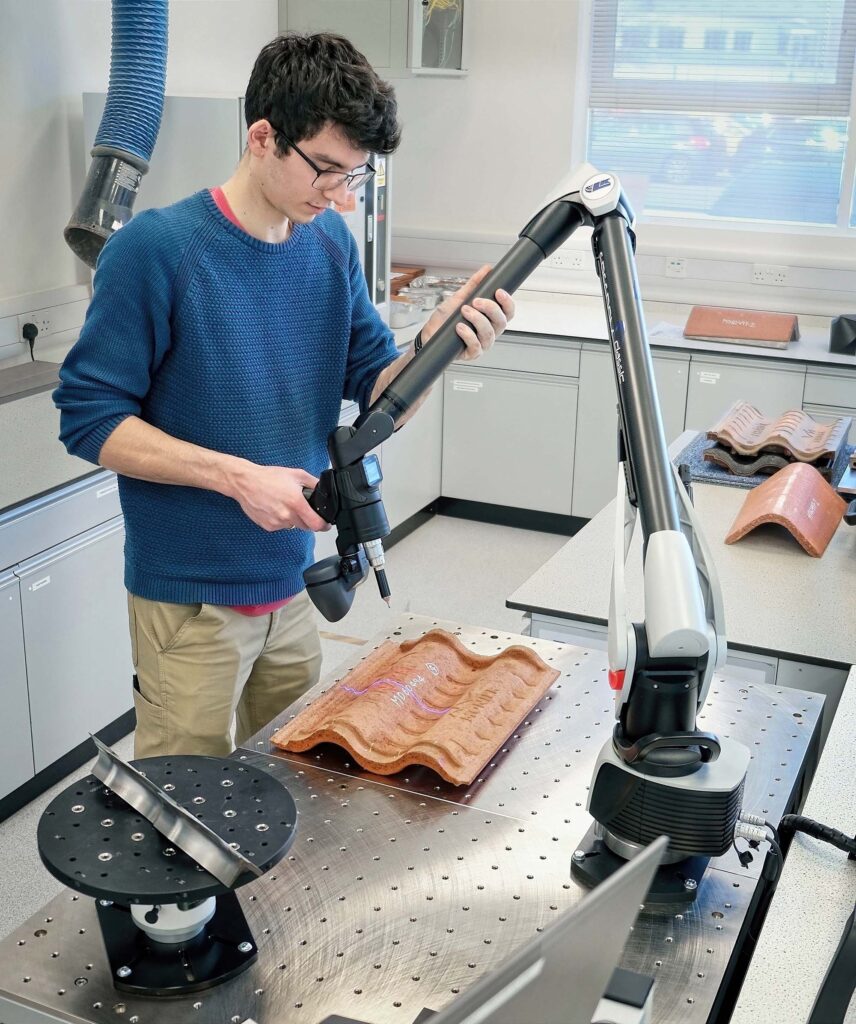

This is the scenario at the Crawley Technical Center of BMI Group, a leading manufacturer of flat and pitched roofing systems, where since July 2024 design engineer Luke Kelly and several of the team have been using a portable measuring arm inspection solution supplied by LK Metrology, Castle Donington.

Superseding a smaller and now unsupported arm and touch probe, which was used alongside conventional, manually-intensive metrology equipment like callipers and height gauges, the new inspection area comprises a 7-axis, multi-sensor FREEDOM Arm Classic Scan with a 2.73-metre reach equipped with a touch probe and an H120 laser line scanner, which since the end of 2023 has been manufactured by LK following its acquisition of Nikon Metrology’s laser scanner hardware and software business. Together with a rotatable, 300 mm diameter FREEDOM Index Table, the lightweight carbon fibre arm is mounted on a metrology table, all elements supplied by LK. Additionally, Innovmetric’s PolyWorks Inspector software was purchased from reseller 3D Scanners (UK) to provide advanced point cloud analysis, evaluate surfaces, measure geometrical features, generate coloured heat maps for part-to-CAD or scan-to-scan comparisons, and generate full reports.

One of the most important inspections performed is on the die-cast aluminium moulds used to form the underside of concrete tiles in the extrusion process The pallets are subject to abrasion and erosion and there are tens of thousands of them in a set, according to the size of the tile manufacturing operation. Re-equipping a large factory with these pallets can cost well in excess of £1 million, so it is important to take samples regularly to assess their

condition, predict lifespan and identify production line issues.

This process is now significantly streamlined with the new LK system, which is especially useful as the frequency with which pallets are sent to the Technical Center for analysis has increased in recent years. The scale of the task is amplified by there being hundreds of pallet sets across the group, including for main tiles, cloak verges, ridges and special fittings.

Luke explained, “Our previous metrology methods for assessing the aluminium pallets, and indeed the tiles themselves, were time consuming to set up and analyse. We took only 16 measurement points around the edges of each pallet, for example, so they wouldn’t show some of the wear in the centre of the objects that the laser scanner is able to.

“The amount and quality of the metrology data has increased enormously with laser scanning, allowing us to feed back much more detailed reports to our tile factories so they can make any necessary adjustments to the production line and predict the number of passes the pallets can make before needing replacement.

“Reverse engineering of tiles using the scanner is much faster and richer in detail than our previous method of taking individual cross sections. For some applications where we want a reference CAD model, it will save us days of work creating it from scratch, as we can simply use the STL output from the laser scanning software.

“The touch probe is mainly needed on the end of the LK arm for checking, both to the design and to EN 1024 standards, the twist and camber of clay tiles after they have been fired in a kiln. Inspecting the requisite 10 clay tiles each time would take too long to complete by laser scanning.”

The range of component sizes

in Crawley is vast, from 0.5 mm thick sheet metal through small plastic and metal clips to a solar roof panel measuring more than one metre across. The LK metrology solution copes with all of them and enables much more comprehensive reporting than previously. Luke said that scan times are quick and the reporting tools are easy to use, rapidly producing easy-to-understand images for further analysis by specialists.

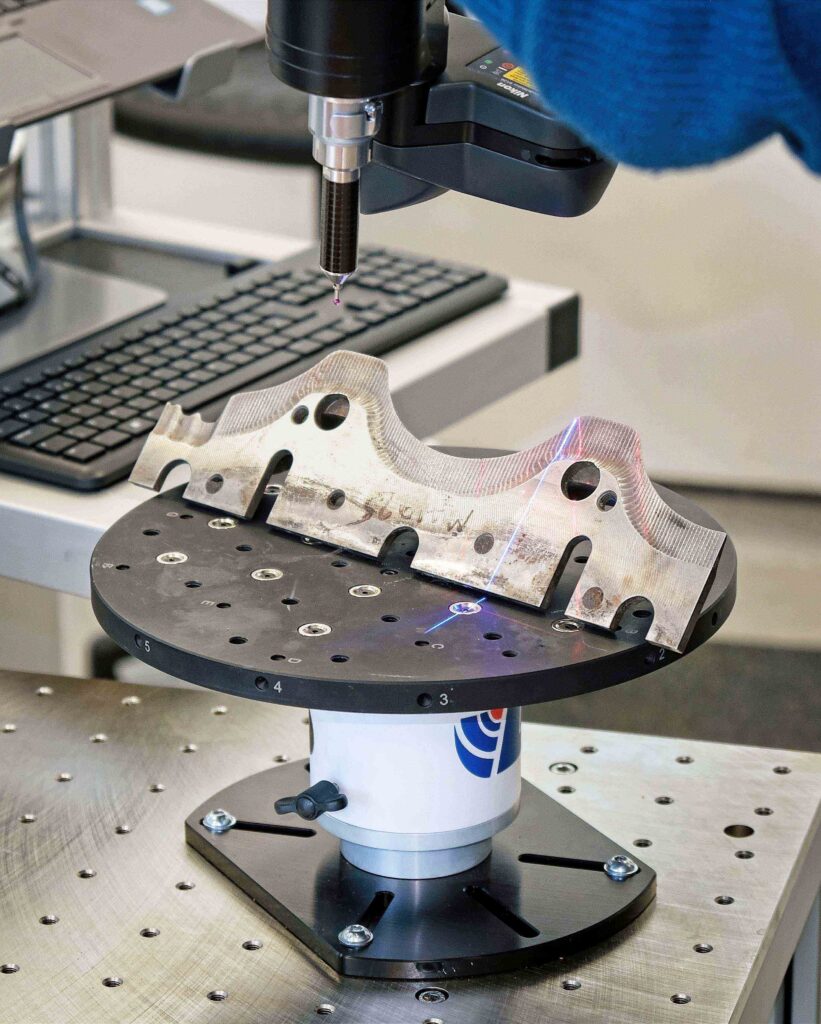

The index table is useful for accelerating the measurement of some smaller parts where all- round access is required. It is another reason for having the end-of-arm probe, which is touched into three or more fiducial dimples machined into the top of the table and around its periphery. It is then a simple matter to click the on-screen FREEDOM Index Table macro in the PolyWorks software to update the coordinate system and continue capturing the surface data.

The BMI Technical Center is now considering the acquisition of an LK metrology-grade tripod so that the portable measuring arm can be taken into the group’s factories to carry out QC in-situ. It would reduce the time delay and costs associated with having sample pallets, tiles and other items such as legacy machinery components delivered to Crawley for inspection.

BMI UK & Ireland is part of BMI Group, the largest roofing and waterproofing company in Europe with a significant presence in Asia and Africa. It brings together some of the most trusted brand names in the industry, including Redland, Icopal, Sealoflex and Rosemary. The global group has a considerable presenceinthe UK, withfourconcrete roof tile factories, a clay tile manufacturing plant and another for producing tiles from recycled slate. BMI is the only manufacturer in the UK and Ireland of both pitched and flat roofing solutions, making it uniquely placed to support any new build or renovation roofing project.
