3D Edge Break Measurement from Optimax
Estimated reading time 2 minutes
Edge breaking involves rounding or chamfering sharp corners to enhance part longevity, ensure aerodynamic performance, and improve safety. Despite its importance, traditional inspection methods struggle to provide the precision required for modern manufacturing. Visual inspection using optical comparators remains inherently subjective and fails to produce quantifiable data, as results vary based on lighting and inspector alignment.
While 2D portable stylus profilers provide quantification, they are prone to significant errors because single-trace measurements are highly sensitive to the specific location and angle of the probe. Furthermore, these devices are hindered by fragile tips, limited vertical range for large chamfers, and a susceptibility to vibration that can extend setup times to over 30 minutes. Laser-based gage guns offer an alternative but are limited to low-resolution, single-line scans that are easily compromised by material reflectivity, surface slope, and alignment errors.
3D measurement provides accurate, repeatable edge break analysis

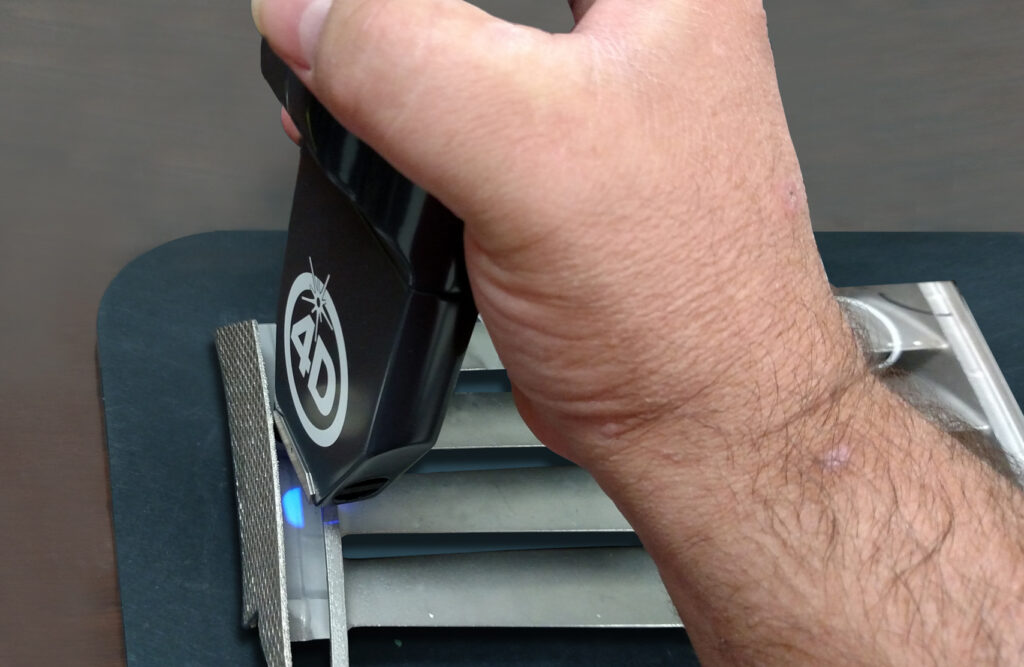

The 4D InSpec is a durable, handheld 3D measurement device utilizing polarized structured light for rapid shop-floor analysis of edge breaks and chamfer angles. Unlike 2D methods, its 3D approach uses connected planes to represent geometries, making measurements independent of gauge orientation. By calculating profiles relative to these planes, the system ensures superior accuracy, repeatability, and reproducibility for precision part geometries. It is a handheld, 3D measurement device using polarised structured light for rapid, simple, shop-floor measurement of edge break, chamfer angles, and other precision parts.
By modeling the chamfer and joining sides as interconnected 3D planes, the system achieves orientation independence. Because all profiles are calculated relative to these fixed planes, the measurement remains accurate regardless of how you hold the gauge.
